Description

Composed by:
Lift table with driven rollers
Board pusher for gluing machine in feeding
Blower device
Glue mixer machine
Automatic glue feeding system, equipped with photocells that detect the quantity of glue in the glue spreader, when in the glue spreader there is no enough quantity of glue the system automatically fill the glue spreader with glue. Pump for glue feeding to the Glue spreader machine

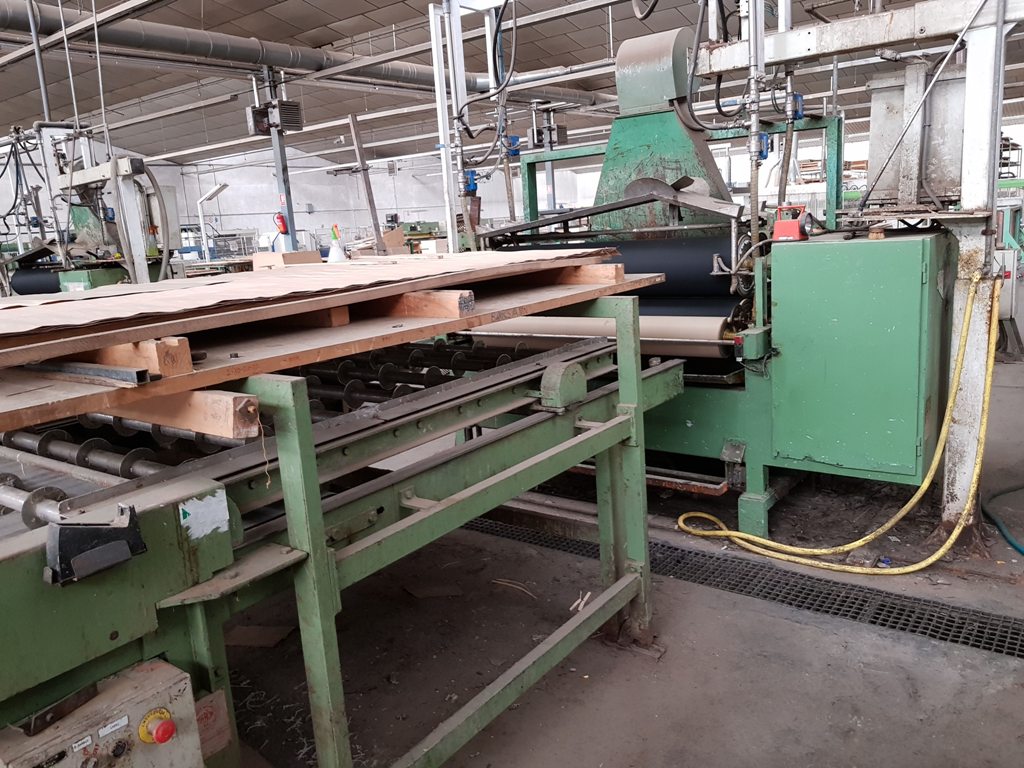

4 Roller glue spreader machine
Disc conveyor

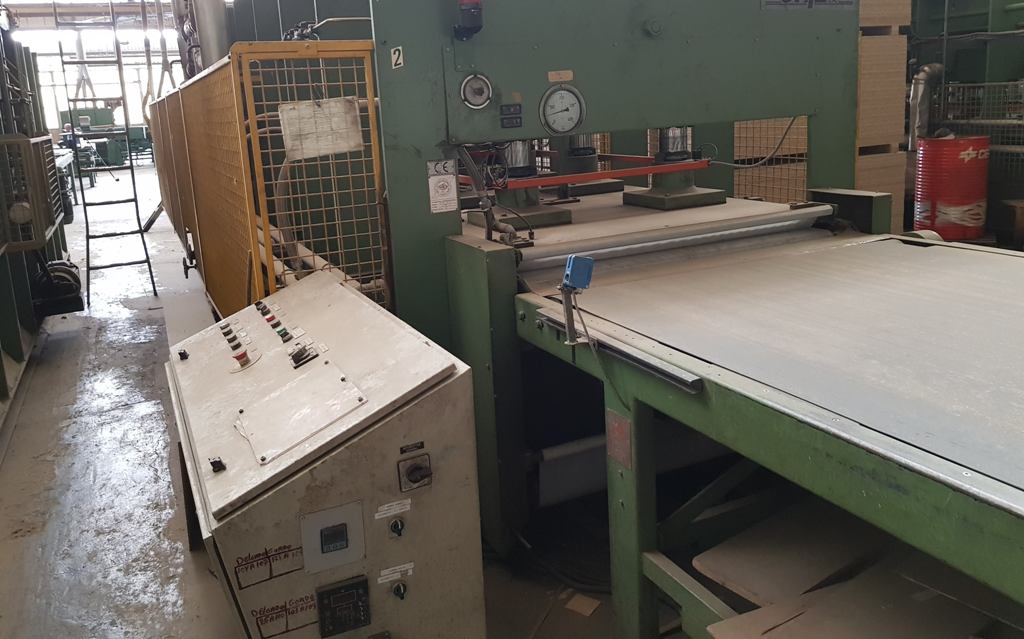

Driven Conveyor belt for board preparation and hot press in feeding

Continuous hot press, with Solid plates of dimensions of 8,000×1,400mm, construction year 1996

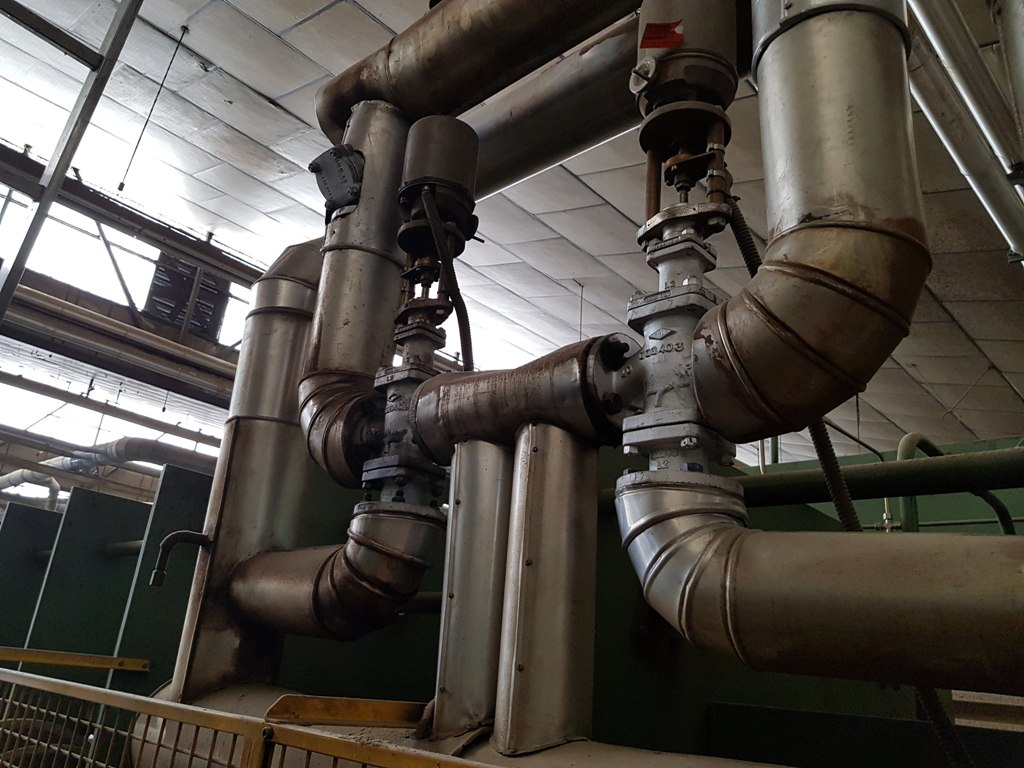

Press equipped with Two oil recirculation pump and Two 3 ways valves, one for each plate, with this twin temperature controls system the plates temperature is different each other, we can set a temperature in the upper plate and a different temperature in the bottom plate, this is suitable system for thin boards covering.

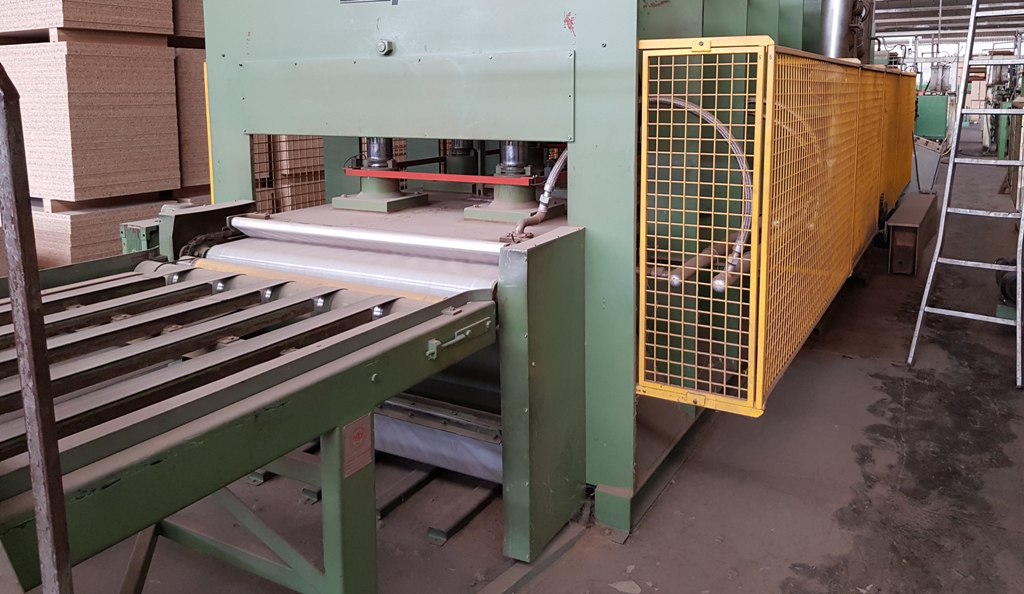

Driven Conveyor belt hot press out feeding
Driven Conveyor rollers with board alignment system for longitudinal trimming unit

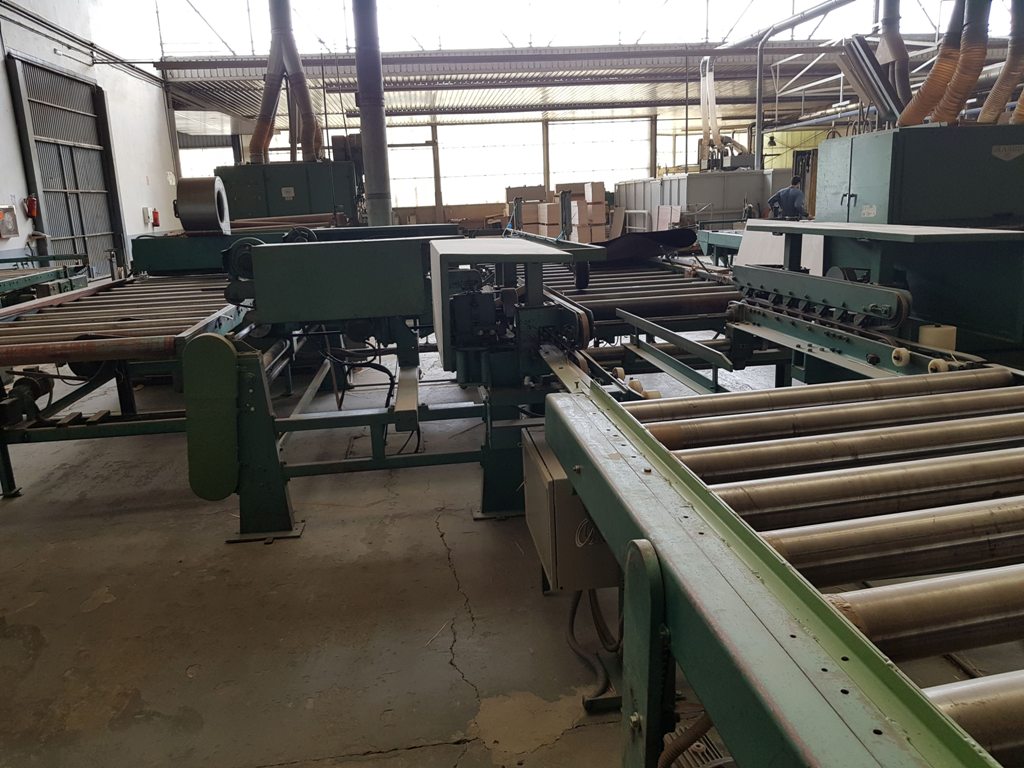

Longitudinal trimming unit
Board 90º turn device
Transversal trimming unit
Driven Conveyor roller between transversal trimming unit and bottom sanding machine
Blower device
Bottom sanding machine 1 head roller
Conveyor roller between bottom sanding machine and top sanding machine

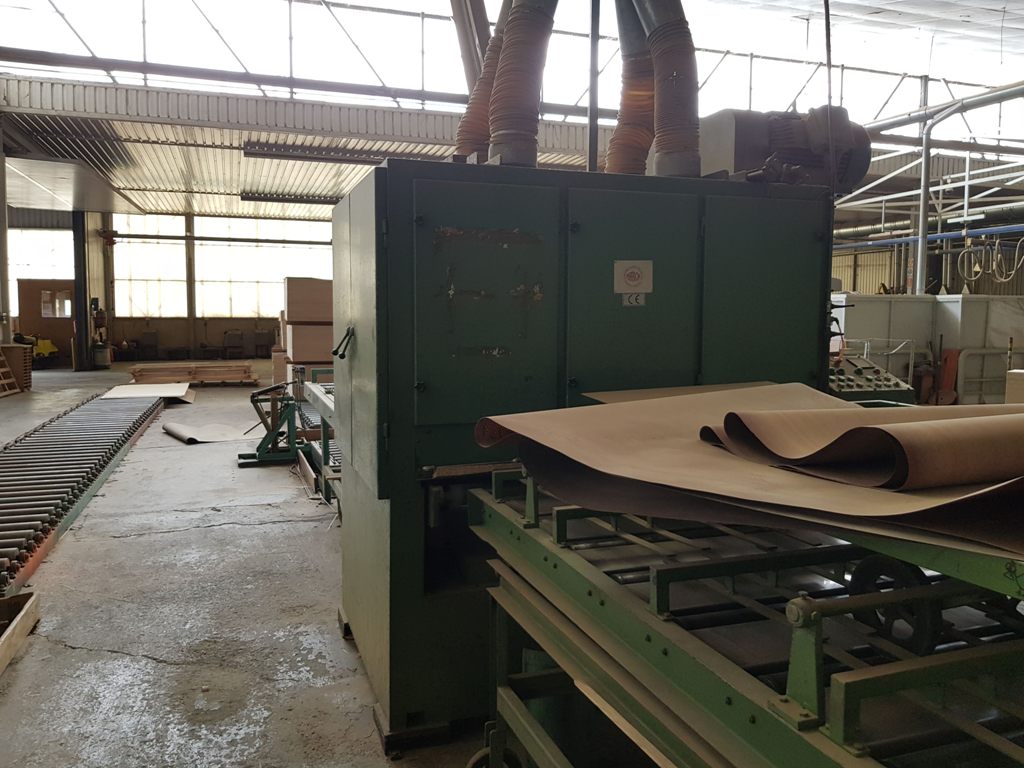

Top sanding machine 2 heads roller
Driven Conveyor roller top sanding machine out feeding

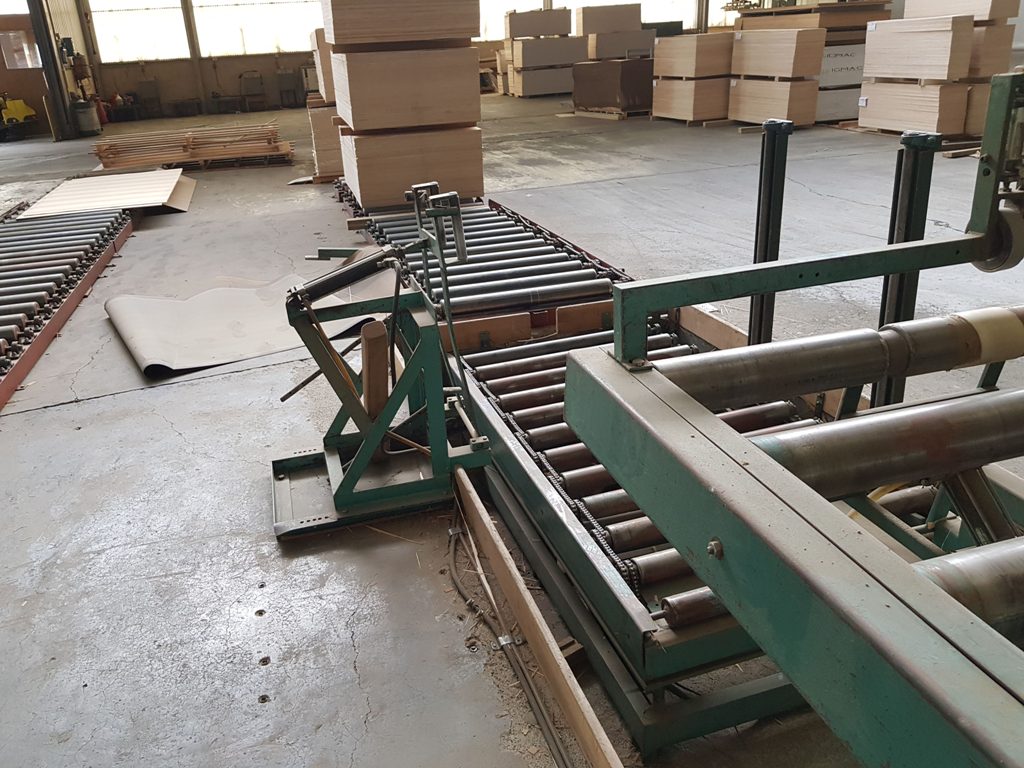

Stacker
Board packs out feeding conveyor driven rollers
