Description

Boiler ANINGAS  of 5 Million Kcal / hour that is in very good condition.

This boiler when had a Thermal oil flowing capacitiy of  440 m3 / h (which is a lot …) and obtained the 5 Million Kcal./hour mentioned
This body would also be worth to produce 3 Mill. Of Kcal / hour, another thing is that by dimensions it is big and they can, or not, attach it to the existing home.

The great advantage is that, if in the future they needed more energy, they would have it without great costs.
Manufacturer: ANINGAS S.A.
Installer: ANINGAS S.A.
Nominal useful power kcal / h: 5,000,000
Type: VERTICAL
Nº Manufacture: 81601
Date of Manufacture: 18-5-2007
Maximum admissible pressure Boiler bar: 9
Maximum effective service pressure bar: 9
Volume: 13 m3
Category of the device: C
Maximum admissible temperature (Ts) ºC: 350 in (thermal oil)
Working temperature ºC: 275 in (thermal oil)
Temperature of the pressure test: Environment
Boiler dimensions:
Outside diameter: 3,290 mm
Outside height: 6,916 mm
Weight (Without oil): 28 Tm
Diameter of inlet-outlet pipes: DN 200-8 “.
Oil flow, minimum required: 440 m3 / h
No. Coils (rings): 3; 5 “doubles

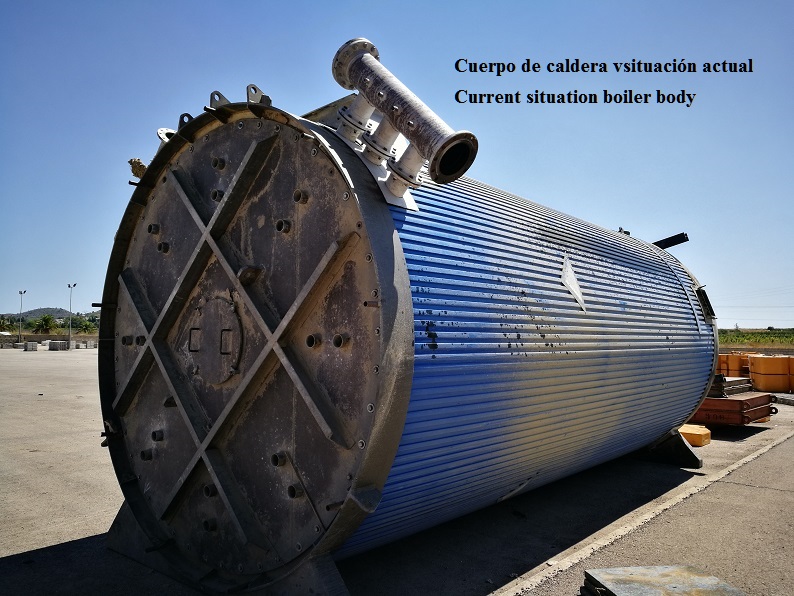

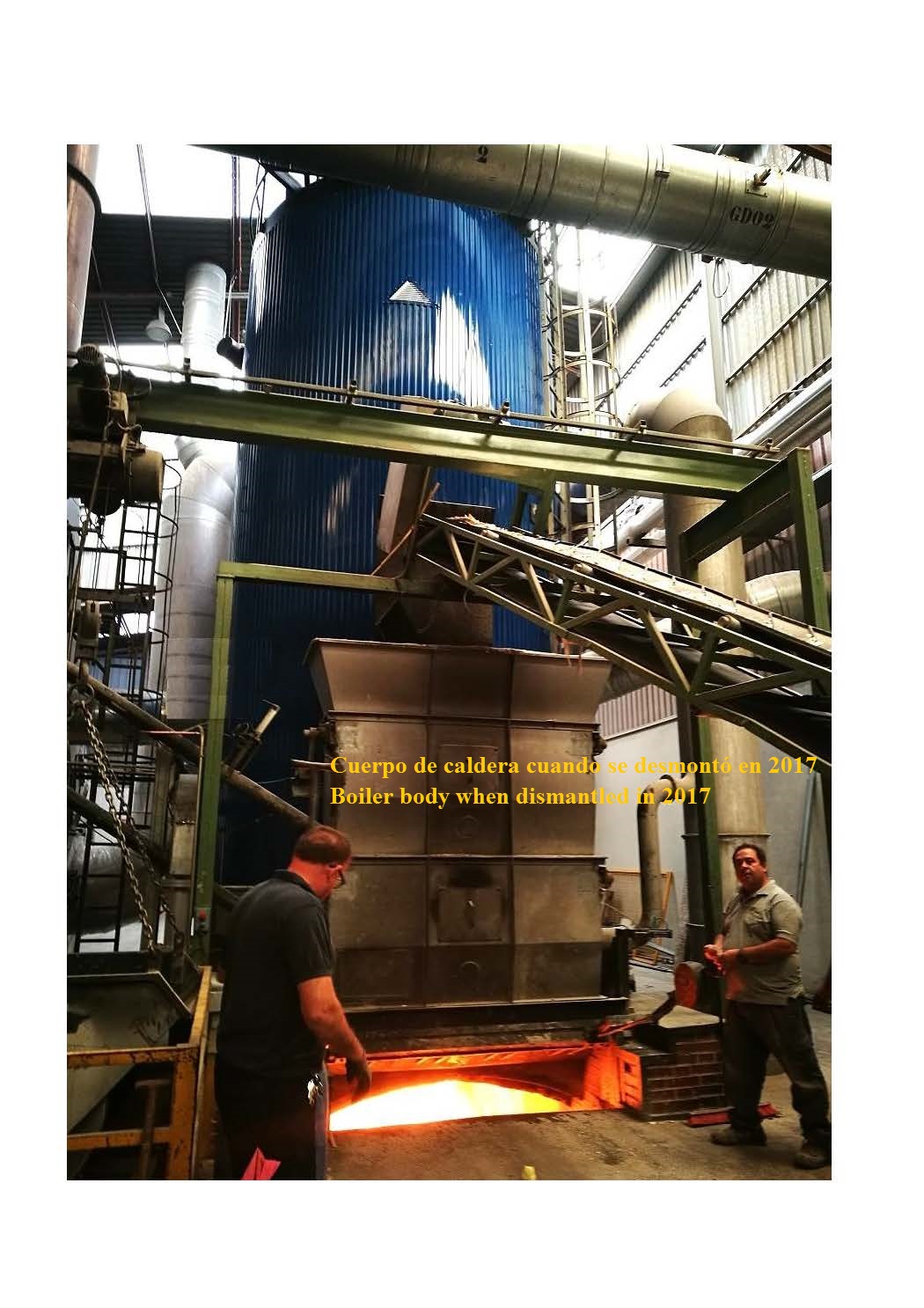

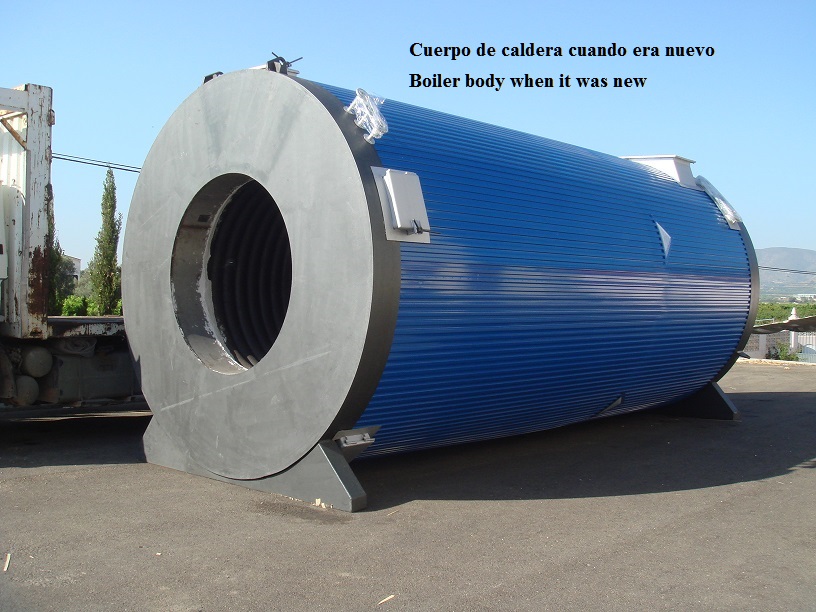

Attached photos of the boiler when it was released and current.
