Description

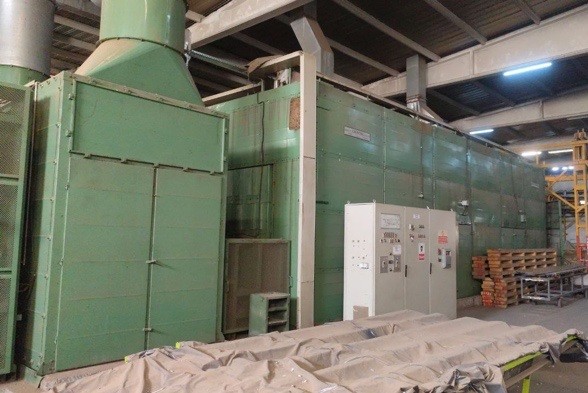

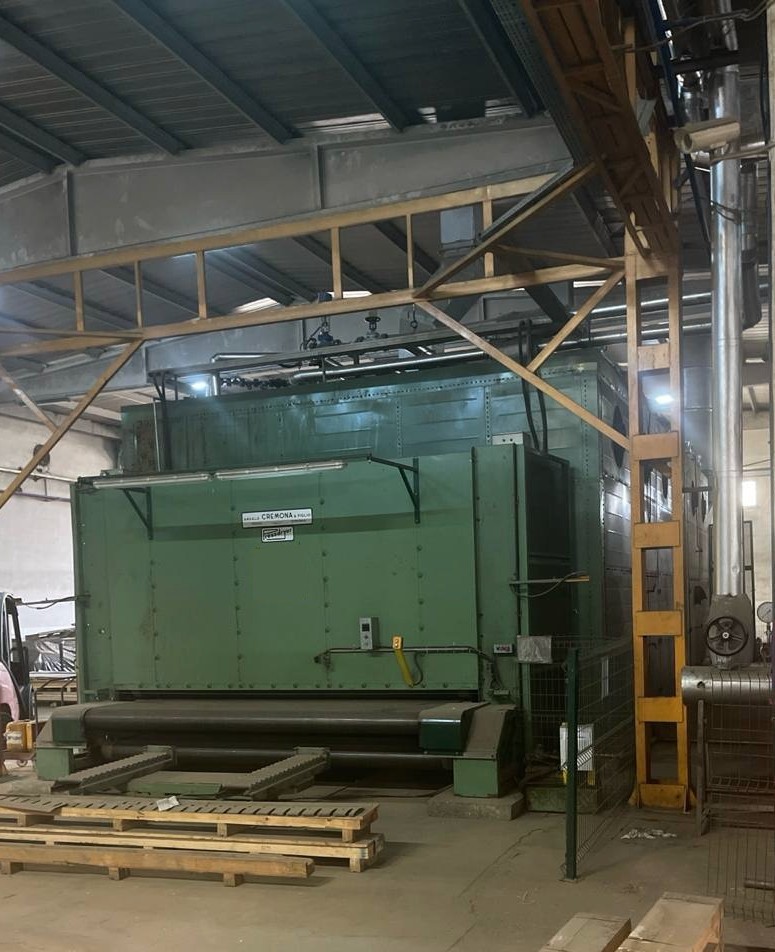

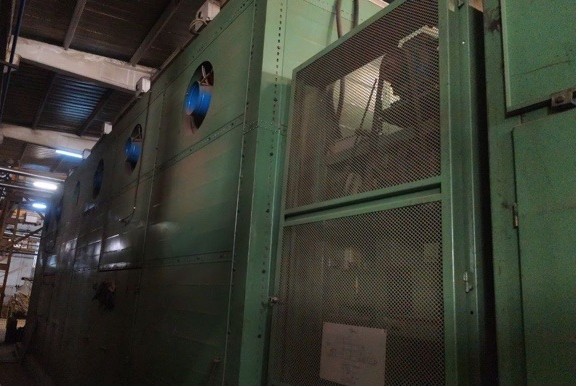

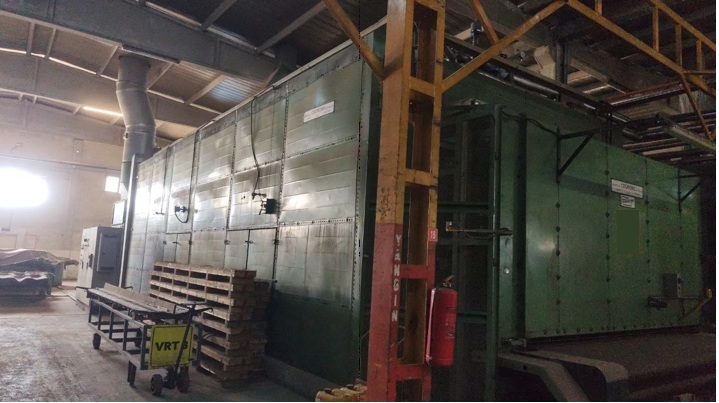

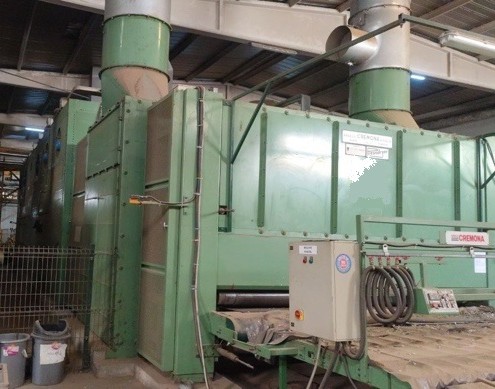

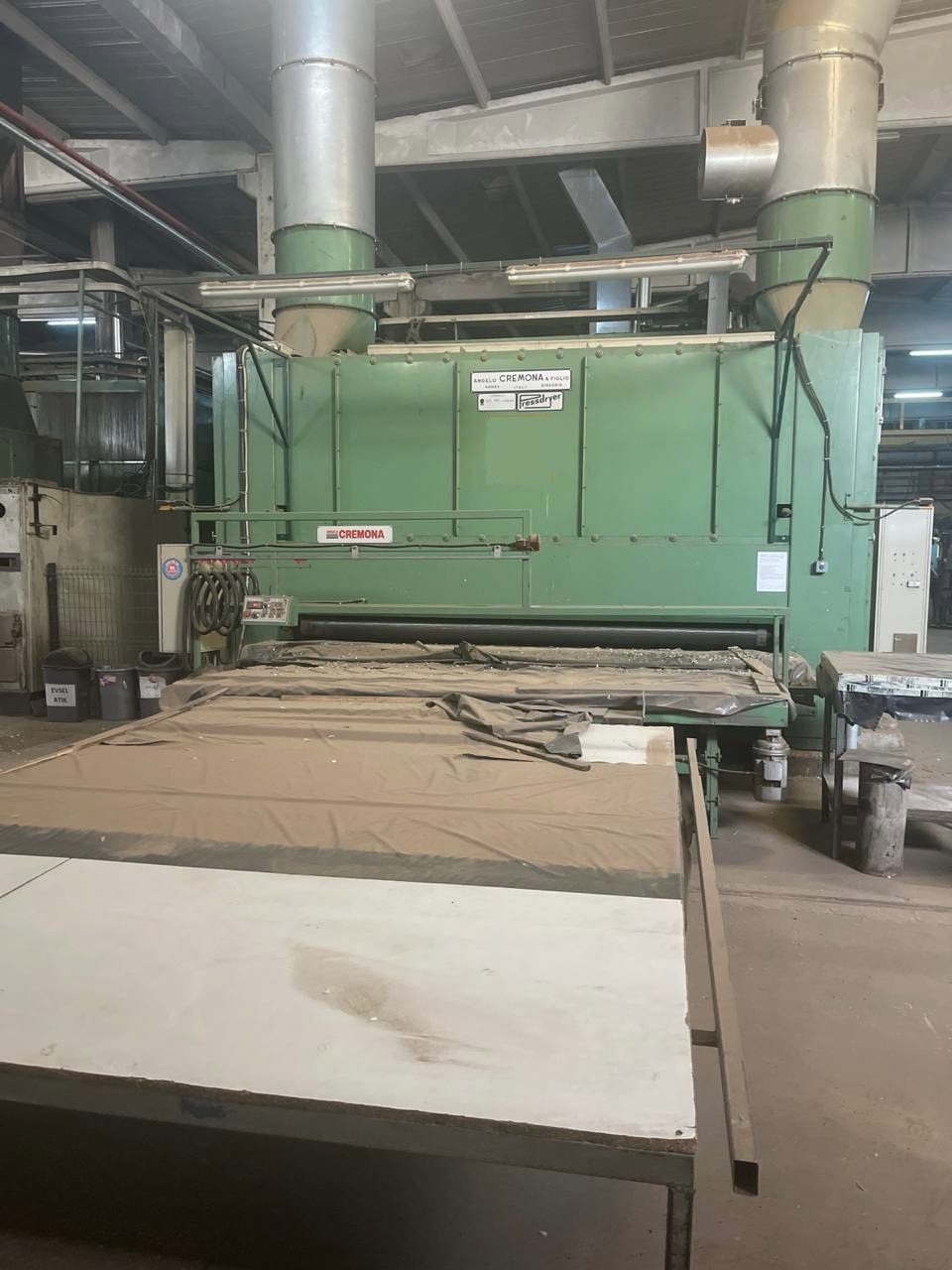

ANGELO CREMONA wood veneer Pressdryer
MOD ES/A-1 3600 MOD.BU/A-1 DRYER UNLOADER
YEAR 1998
ES/A1 12 m + cooling section Lefthand Execution Water

Nominal loading size 3600 mm
Number of drying cells (L=2000 mm) 6
Number of areas with diferentiated climate 3 (2 drying+1 cooling)
Number of first zone/second cells 3-3
Sheet length range length (grain direction) 500-3600 mm
Sheet width range width (crossgrain direction) 100-1300 mm
Enviroment temperature during running 0-40 degree
Relative moisture (not condensating) 0-60%
Termal fluid involved Steam
Loading plane height 880 mm
Loading plane depth 650 mm
Unloading plane height 880 mm
